101 Scout

Trim & Color Options

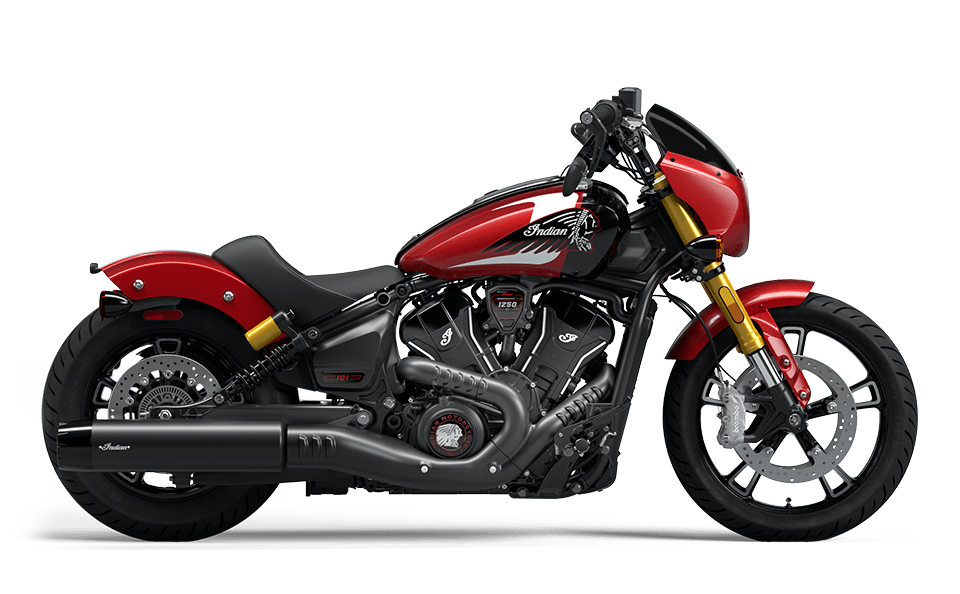

101 Scout

Sunset Red Metallic with Graphics

A next generation motorcycle calls for a next generation engine. With a 11% increase in displacement, the fully redesigned SpeedPlus engine is a 1250cc liquid-cooled V-Twin engine that delivers 111 horsepower and north of 82 ft-lbs of torque, for a balanced, yet thrilling ride.

Starting at $16,999 US MSRP

Apply For Financing

Payment Calculator

Engine & Drivetrain

Bore x Stroke

4.094" x 2.898" (104mm x 73.6mm)

Compression Ratio

12.5:1

Displacement

1250cc

Drive/Driven Clutch

Wet, Multi-Plate

Electronic Fuel Injection System

Closed loop fuel injection / 63 mm bore

Engine Type

Liquid Cooled V-Twin (60 degrees)

Exhaust

2-into-1

Gear Ratio (1st)

2.769 : 1

Gear Ratio (2nd)

1.882 : 1

Gear Ratio (3rd)

1.500 : 1

Gear Ratio (4th)

1.273 : 1

Gear Ratio (5th)

1.125 : 1

Gear Ratio (6th)

0.966 : 1

Horsepower

111 HP

Peak Torque

82 ft-lbs

Peak Torque RPM

6300 rpm

Transmission/Final Drive

2.276:1

Transmission/Primary Drive

Gear Drive Wet Clutch

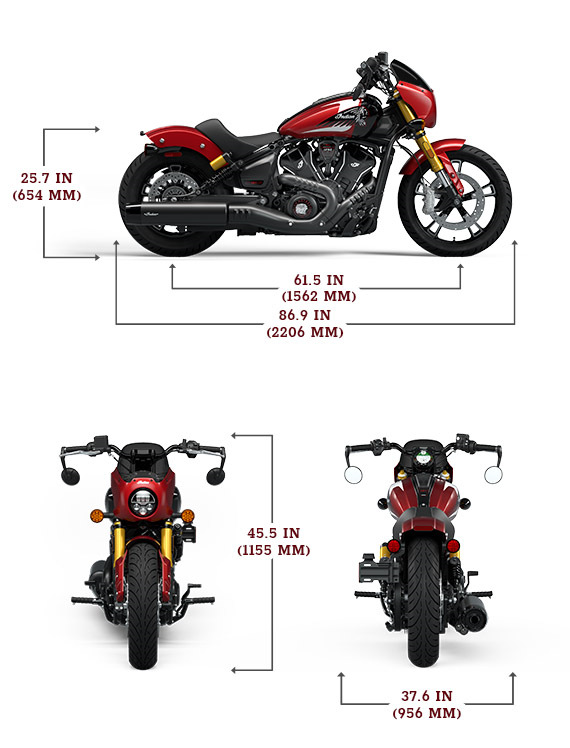

Dimensions

Fuel Capacity

3.4 gal (13.0 L)

Ground Clearance

4.4 in (113 mm)

GVWR

988 lb (449 kg)

Lean Angle

33°

Overall Height

45.5 in / 1155 mm

Overall Length

86.9 in / 2206 mm

Overall Width

37.6 in / 956 mm

Rake/Trail

29.0° / 4.8 in (122.2 mm)

Seat Height (Laden)

25.7 in (654 mm)

Seat Height (Unladen)

26.8 in (680 mm)

Weight (Dry Weight / Running Order)

529 lbs (240 kg) / 549 lbs (249 kg)

Wheelbase

61.5 in (1,562 mm)

Brakes

Front Brakes

Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper

Rear Brakes

Single / 298 mm Rotor / 1 Piston Caliper

Tires / Wheels

Front Tires

Metzeler Cruisetec 130/60B19 61H

Front Wheel

Cast 5-Spoke 19" x 3.5"

Rear Tires

Metzeler Cruisetec 150/80B16 77H

Rear Wheel

Cast 5-Spoke 16" x 3.5"

Suspension

Front Fork Tube Diameter

43 mm

Front Suspension

Inverted Telescopic Cartridge Fork

Front Travel

4.7 in (120 mm)

Rear Suspension

Dual Piggyback Shocks

Rear Travel

3.0 in (76 mm)

Features

Color / Graphics

Sunset Red Metallic with Graphics, Ghost White Metallic with Graphics

Factory Warranty

2 Years, Unlimited Miles

Gauges

Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator

infotainment

4 in Touchscreen powered by RIDE COMMAND. Model year 2024 bikes include a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like vehicle health, account sync, live weather/traffic and intuitive destination search. Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.

Lights

LED Headlight, tail/brake light, turn signals, license plate light and indicator lights

Standard Equipment

ABS, Ride Modes, USB Charge/Data Port, Cruise Control, Traction Control, Keyless Ignition
