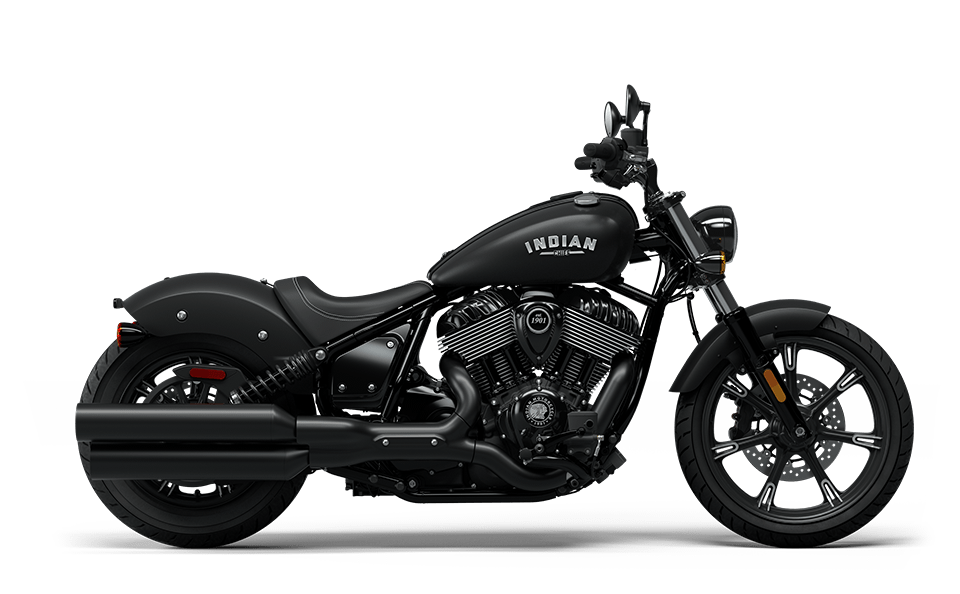

Chief Dark Horse

Black Smoke

The air-cooled Thunderstroke 116 produces 120 ft-lbs of raw torque for passing power in all 6 gears, giving you the power to leave everything - and everyone - in your exhaust.

Starting at $18,499 US MSRP

Apply For Financing

Payment Calculator

Engine & Drivetrain

Bore x Stroke

4.063 in x 4.449 in (103.2 mm x 113 mm)

Compression Ratio

11.0:1

Displacement

116 cu in (1,890 cc)

Drive/Driven Clutch

Wet, Multi-Plate

Electronic Fuel Injection System

Closed loop fuel injection / 54 mm bore

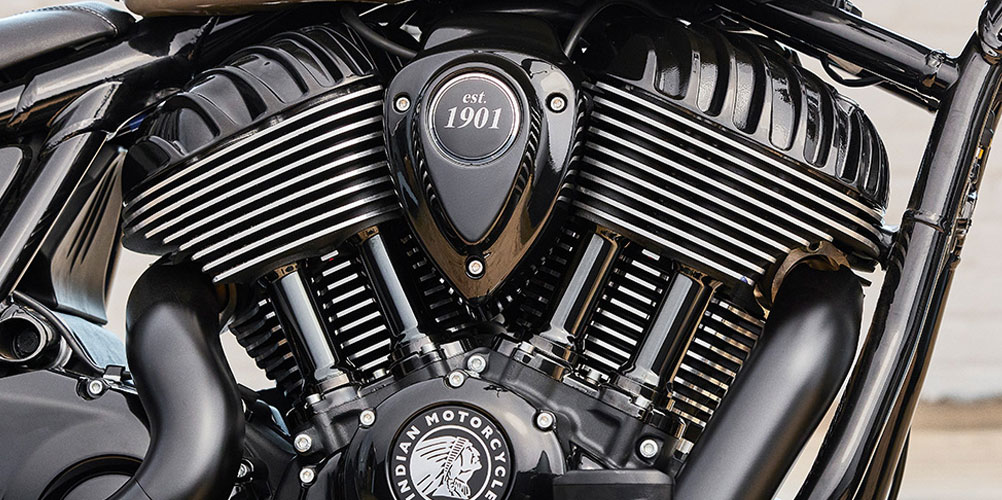

Engine Type

Air-cooled Thunderstroke 116

Exhaust

Dual Exhaust w/ Crossover

Gear Ratio (1st)

9.403 : 1

Gear Ratio (2nd)

6.411 : 1

Gear Ratio (3rd)

4.763 : 1

Gear Ratio (4th)

3.796 : 1

Gear Ratio (5th)

3.243 : 1

Gear Ratio (6th)

2.789 : 1

Peak Torque

120 ft-lbs

Peak Torque RPM

2,900 rpm

Transmission/Final Drive

2.2 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

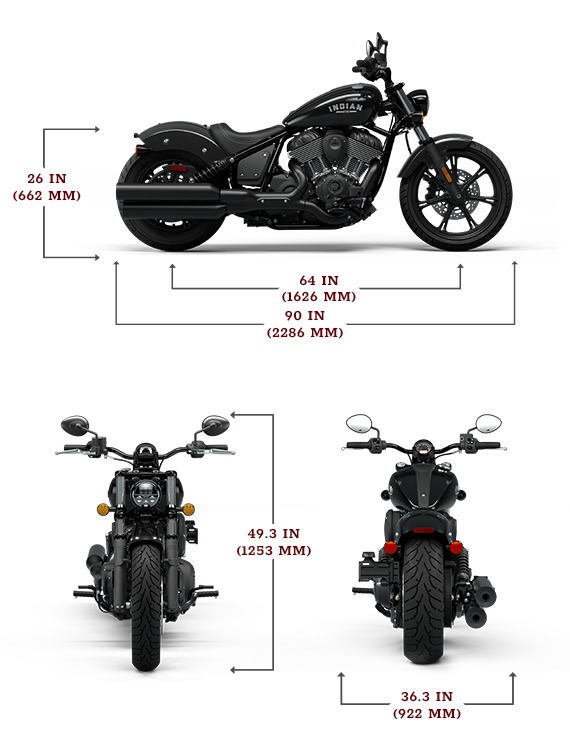

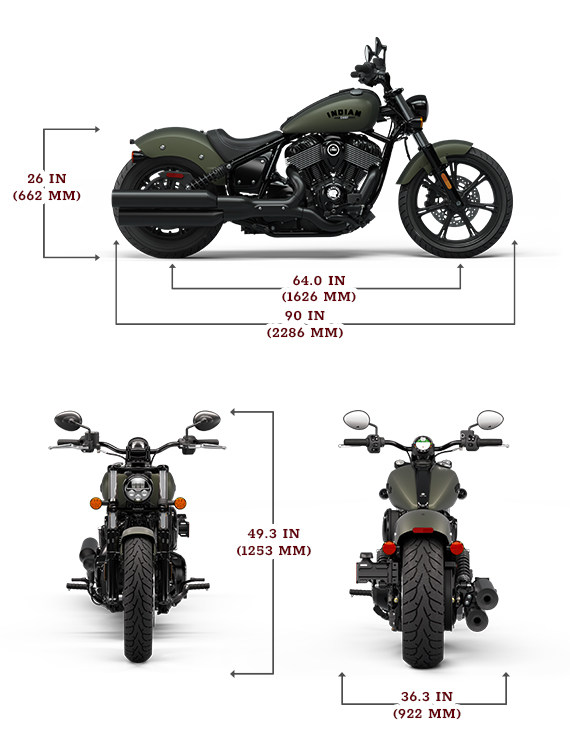

Dimensions

Fuel Capacity

4.0 gal (15.1 L)

Ground Clearance

4.9 in (125 mm)

GVWR

1,160 lbs (522 kg)

Lean Angle

28.5°

Overall Height

49.3 in (1,253 cm)

Overall Length

90 in (2,286 mm)

Overall Width

36.3 in (922 mm)

Rake/Trail

29° / 5.2 in (132 mm)

Seat Height

26.0 in (662 mm)

Weight (As Shipped / Running Order)

647 lbs (294 kg) / 670 lbs (304 kg)

Wheelbase

64.0 in (1,626 mm)

Brakes

Front Brakes

Single / 300mm Semi-Floating Rotor / 4 Piston Caliper

Rear Brakes

Single / 300mm Floating Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires

Pirelli® Night Dragon 130/60B19 61H

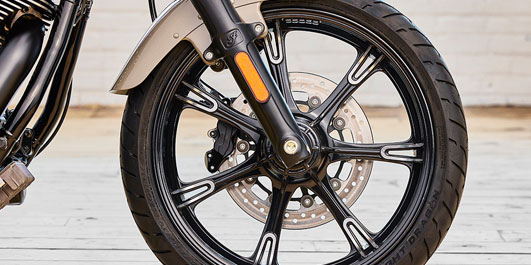

Front Wheel

Machine Highlighted Cast Black 19 in x 3.5 in

Rear Tires

Pirelli® Night Dragon 180/65 B16 81H

Rear Wheel

Machine Highlighted Cast Black 16 in x 5 in

Suspension

Front Fork Tube Diameter

46 mm

Front Suspension

Telescopic Fork

Front Travel

5.2 in (132 mm)

Rear Suspension

Dual Shocks w/adjustable preload

Rear Travel

3.0 in (75 mm)

Features

Color / Graphics

Black Smoke, Icon: Sandstone Smoke, Springfield Blue Matte, Sunset Red Metallic

Factory Warranty

2 Years, Unlimited Miles

Gauges

Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator

Infotainment

4 in Touchscreen powered by RIDE COMMAND. Model year 2024 bikes include a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic and intuitive destination search. Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.

Lights

LED Headlight, LED Tail/Brake/Turn Signals

Standard Equipment

ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
