FTR

Trim & Color Options

FTR

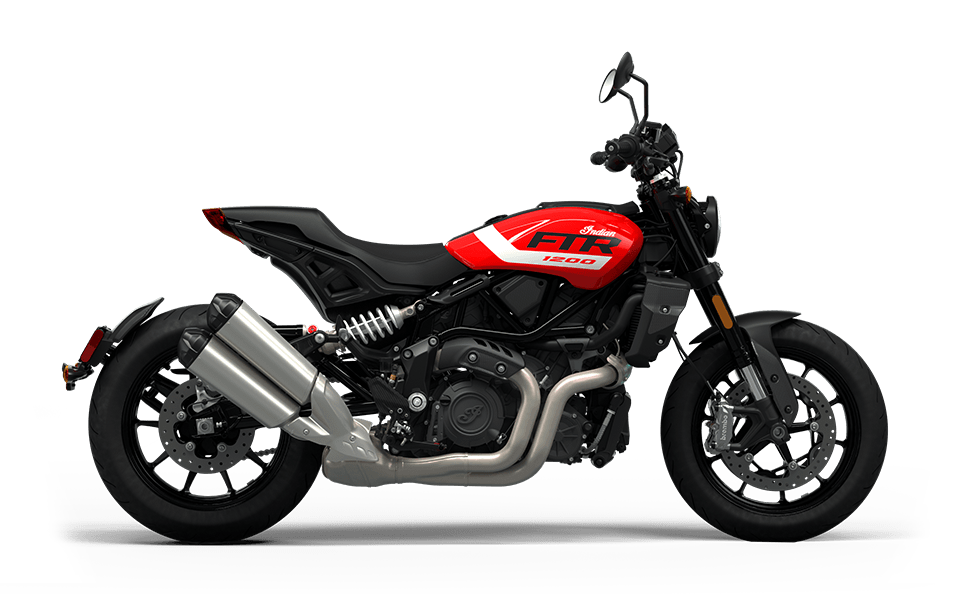

Indy Red / Black

Chiseled and muscular, FTR is the essence of what a motorcycle should look like - a brutish V-twin engine in plain sight, tightly surrounded by an elegant looking trellis frame.

Starting at $13,499 US MSRP

Apply For Financing

Payment Calculator

Engine & Drivetrain

Bore x Stroke

4.016 in x 2.898 in (102 mm x 73.6 mm)

Compression Ratio

12.5:1

Displacement

73 cu in (1203 cc)

Drive/Driven Clutch

Assist & Slip, Multi-Plate

Electronic Fuel Injection System

Closed Loop Fuel Injection / 60 mm Bore

Engine Type

Liquid Cooled V-Twin

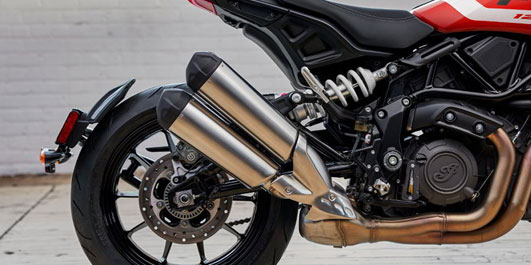

Exhaust

2-into-1, Catalyst in collector

Gear Ratio (1st)

12.270 : 1

Gear Ratio (2nd)

8.341 : 1

Gear Ratio (3rd)

6.646 : 1

Gear Ratio (4th)

5.639 : 1

Gear Ratio (5th)

4.985 : 1

Gear Ratio (6th)

4.278 : 1

Horsepower

120 HP

Peak Torque

87 ft-lbs (118 Nm)

Peak Torque RPM

6,000 rpm

Transmission/Final Drive

2.647 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

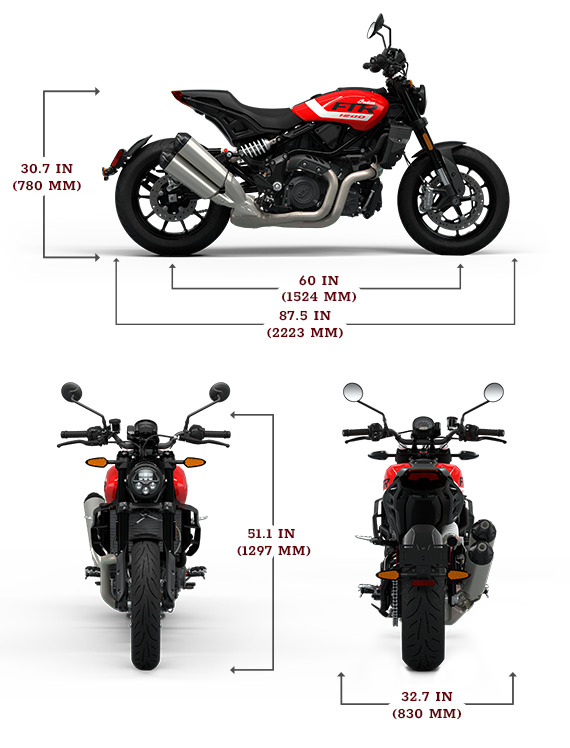

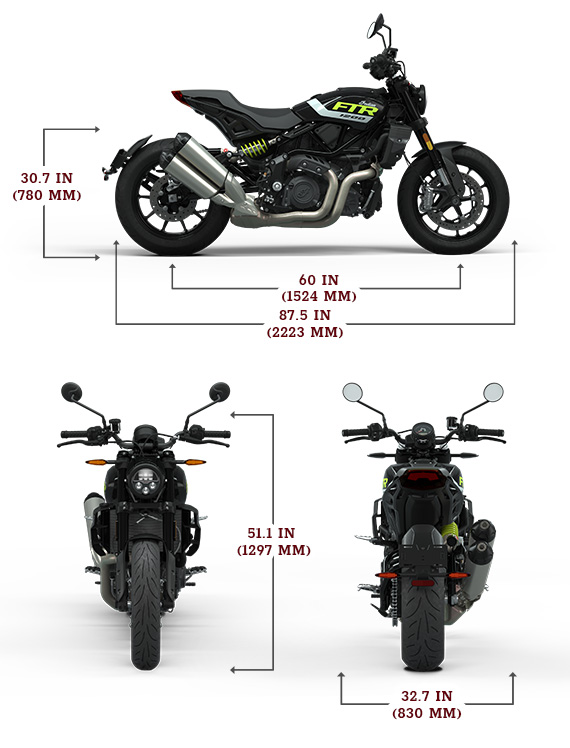

Dimensions

Fuel Capacity

3.4 gal (12.9 L)

Ground Clearance

6.5 in (17 cm)

GVWR

948 lb (430 kg)

Overall Height

51.1 in (1297 mm)

Overall Length

87.5 in (2223 mm)

Overall Width

32.7 in (830 mm)

Rake/Trail

25.3° / 3.9 in ( 99.9 mm)

Seat Height

31.7 in (805 mm)

Weight (Dry Weight / Running Order)

494 lbs (224 kg) / 514 lbs (233 kg)

Wheelbase

60 in (1,524 mm)

Brakes

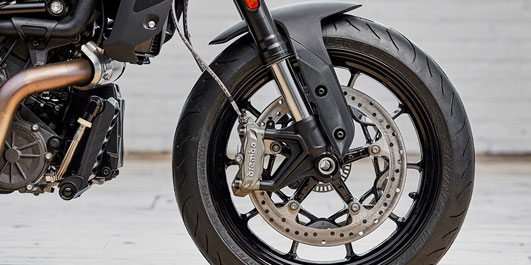

Front Brakes

Brembo Dual 320mm t5 Rotor / 4 Piston Caliper

Rear Brakes

Brembo Single 260mm t5 Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires

Metzeler Sportec M9 RR 120/70ZR17 58W

Front Wheel

Cast 17 in x 3.5 in

Rear Tires

Metzeler Sportec M9 RR 180/55ZR17 73W

Rear Wheel

Cast 17 in x 5.5 in

Suspension

Front Fork Tube Diameter

43 mm

Front Suspension

ZF Sachs Fully Adjustable Inverted Telescopic Cartidge Fork

Front Travel

120 mm

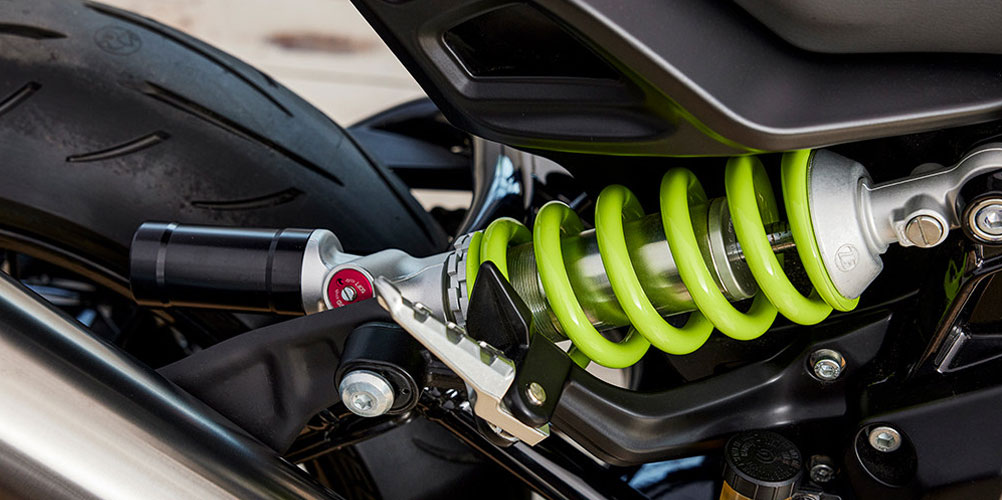

Rear Suspension

ZF Sachs Fully Adjustable Piggyback IFP

Rear Travel

120 mm

Features

Color / Graphics

Indy Red / White

Factory Warranty

2 Years, Unlimited Miles

Gauges

4" Analog, Digital Tachometer, Odometer, Trip Meter, Engine Temp, Low Fuel Lamp

Infotainment

N/A

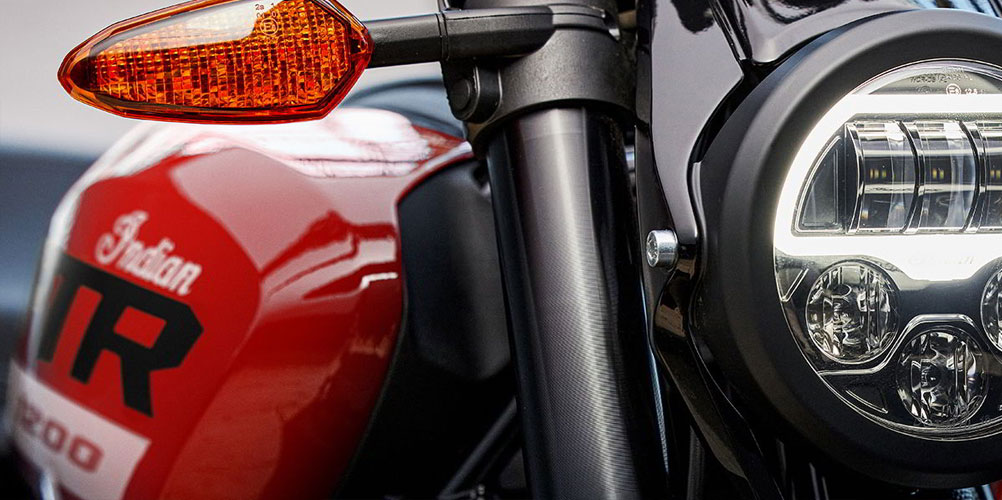

Lights

LED Headlight, Taillight, Turn Signals

Standard Equipment

ABS, Cruise Control
