FTR R Carbon

Trim & Color Options

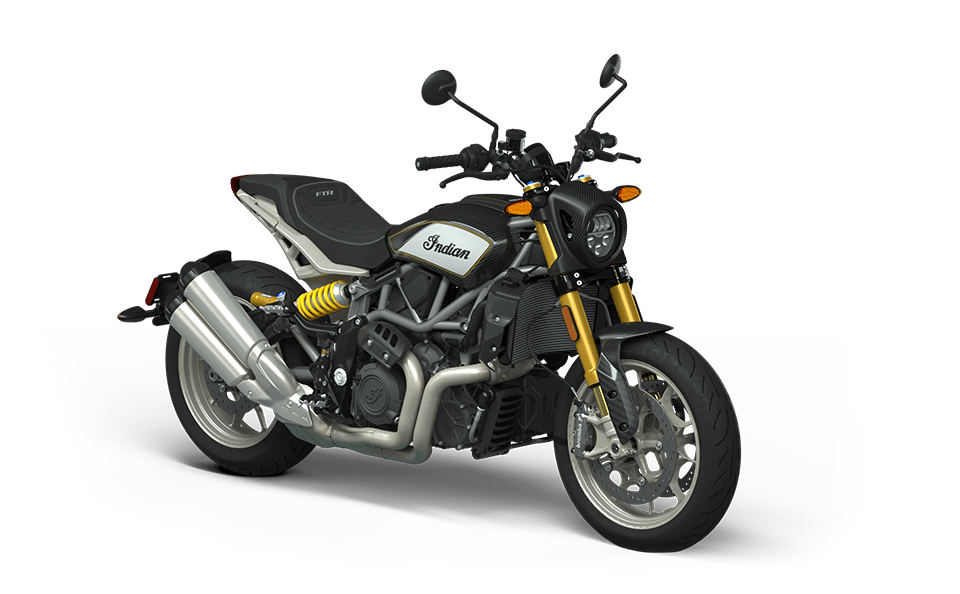

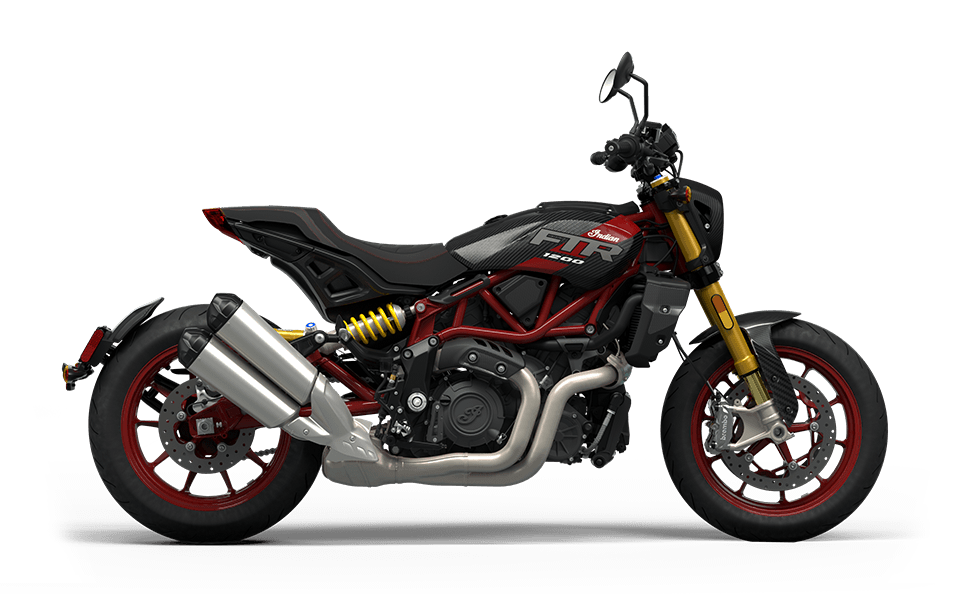

FTR R Carbon
Carbon Fiber

Chiseled, muscular, and sophisticated, the FTR R Carbon is the essence of what a motorcycle should look like. Totally inspired by our flat track roots, the very things that make it stylish also make it so incredibly functional. It's not only beautiful standing still.

Starting at $17,249 US MSRP
Apply For Financing

Payment Calculator

Rate (%)
cashTrade ($)
Term
Est. Monthly Payment
Estimated monthly payment will depend on vehicle make and model and will be determined upon actual/vehicle inspection. All payments are estimate, tax, title and any other fees are extra.

Engine & Drivetrain

Bore x Stroke
4.016 in x 2.898 in (102 mm x 73.6 mm)
Compression Ratio
12.5:1
Displacement
73 cu in (1203 cc)
Drive/Driven Clutch
Assist & Slip, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin
Exhaust
2-into-1, Catalyst in collector
Gear Ratio (1st)
12.270 : 1
Gear Ratio (2nd)
8.341 : 1
Gear Ratio (3rd)
6.646 : 1
Gear Ratio (4th)
5.639 : 1
Gear Ratio (5th)
4.985 : 1
Gear Ratio (6th)
4.278 : 1
Horsepower
120 HP
Peak Torque
87 ft-lbs (118 Nm)
Peak Torque RPM
6,000 rpm
Transmission/Final Drive
2.647 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch

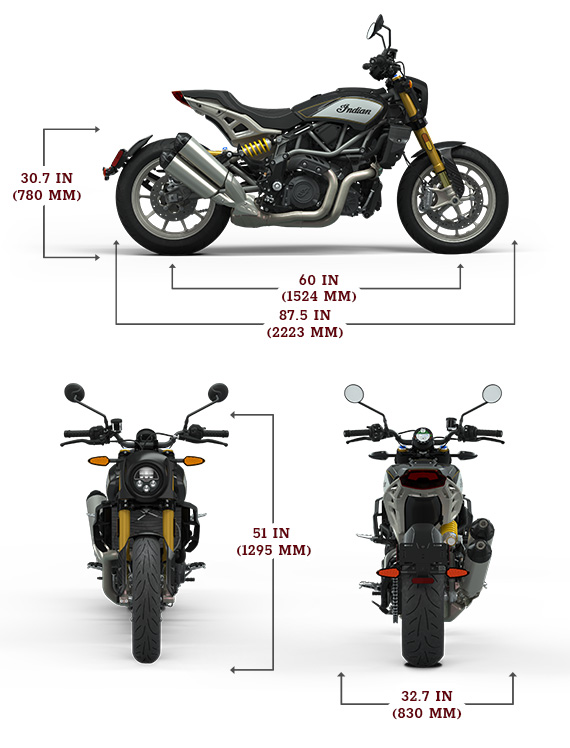

Dimensions

Fuel Capacity
3.4 gal (12.9 L)
Ground Clearance
6.5 in (165 mm)
GVWR
948 lb (430 kg)
Lean Angle
43°
Overall Height
51 in (129.5 cm)
Overall Length
87.5 in (2223 mm)
Overall Width
32.7 in (830 mm)
Rake/Trail
25.3° / 3.9 in ( 99.9 mm)
Seat Height
31.7 in (805 mm)
Weight (Dry Weight / Running Order)
492 lbs (223 kg) / 518 lbs (235 kg)
Wheelbase
60 in (1,524 mm)

Brakes

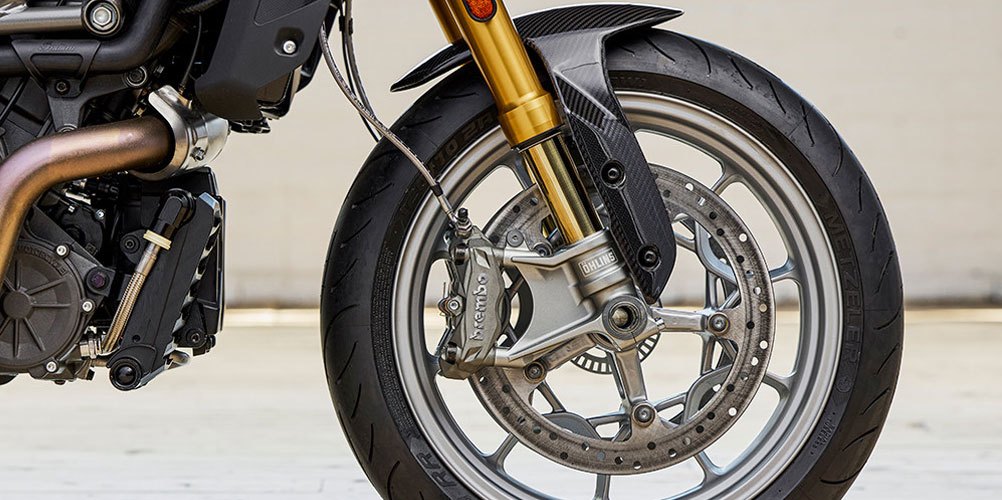

Front Brakes
Brembo Dual 320mm t5 Rotor / 4 Piston Caliper
Rear Brakes
Brembo Single 260mm t5 Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires
Metzeler Sportec M9 RR 120/70ZR17 58W
Front Wheel
Cast 17 in x 3.5 in
Rear Tires
Metzeler Sportec M9 RR 180/55ZR17 73W
Rear Wheel
Cast 17 in x 5.5 in

Suspension

Front Fork Tube Diameter
43 mm
Front Suspension
Ohlins Fully Adjustable Inverted Telescopic Cartidge Fork
Front Travel
120 mm
Rear Suspension
Ohlins Fully Adjustable Piggyback IFP
Rear Travel
120 mm

Features

Color / Graphics
Carbon Fiber
Factory Warranty
2 Years, Unlimited Miles
Gauges
N/A
Infotainment
4 in Touchscreen powered by RIDE COMMAND. Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, Taillight, Turn Signals
Standard Equipment
Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stabilitiy Control, Traction Control, Wheelie and rear lift Mitigation, USB Charge Port, Cruise Control
