Indian Springfield

Trim & Color Options

Indian Springfield

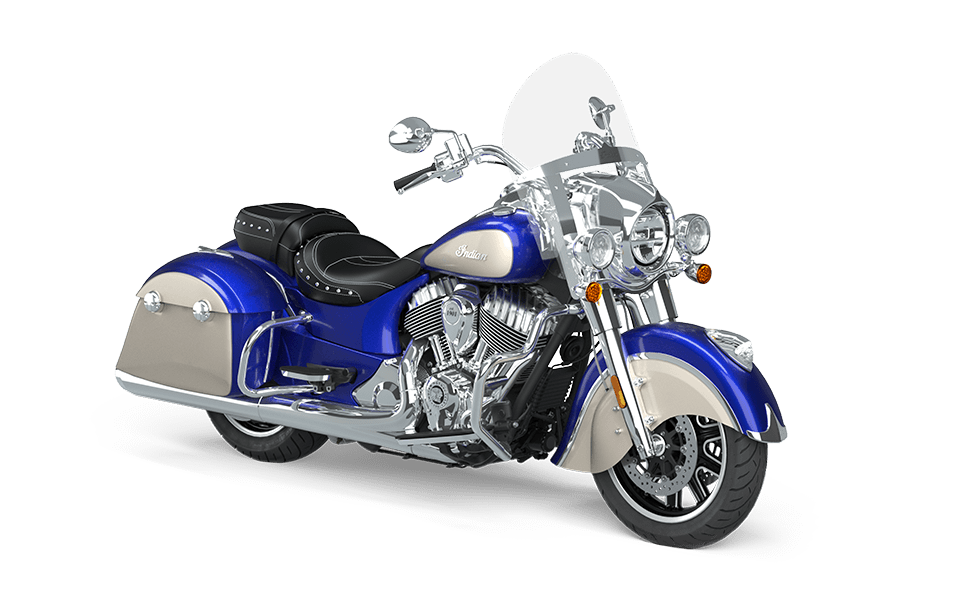

Spirit Blue Metallic / Silver Quartz Metallic

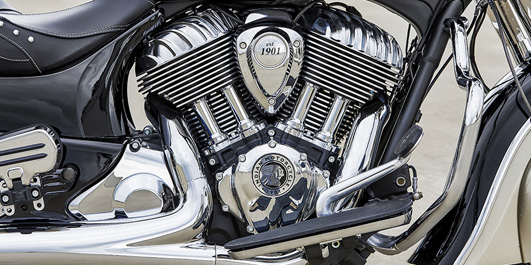

Powered by the award-winning Thunderstroke 111, delivering 119 ft-lb of torque for impressive acceleration and passing power.

Starting at $22,499 US MSRP

Apply For Financing

Payment Calculator

Engine & Drivetrain

Bore x Stroke

3.976 in x 4.449 in (101 mm x 113 mm)

Compression Ratio

9.5:1

Displacement

111 cu in (1,811 cc)

Drive/Driven Clutch

Wet, Multi-Plate, Assist

Electronic Fuel Injection System

Closed loop fuel injection / 54 mm bore

Engine Type

Air-cooled Thunderstroke 111

Exhaust

Split Dual Exhaust w/ Cross-over

Gear Ratio (1st)

9.403 : 1

Gear Ratio (2nd)

6.411 : 1

Gear Ratio (3rd)

4.763 : 1

Gear Ratio (4th)

3.796 : 1

Gear Ratio (5th)

3.243 : 1

Gear Ratio (6th)

2.789 : 1

Peak Torque

119 ft-lbs

Peak Torque RPM

3,000 rpm

Transmission/Final Drive

2.2 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

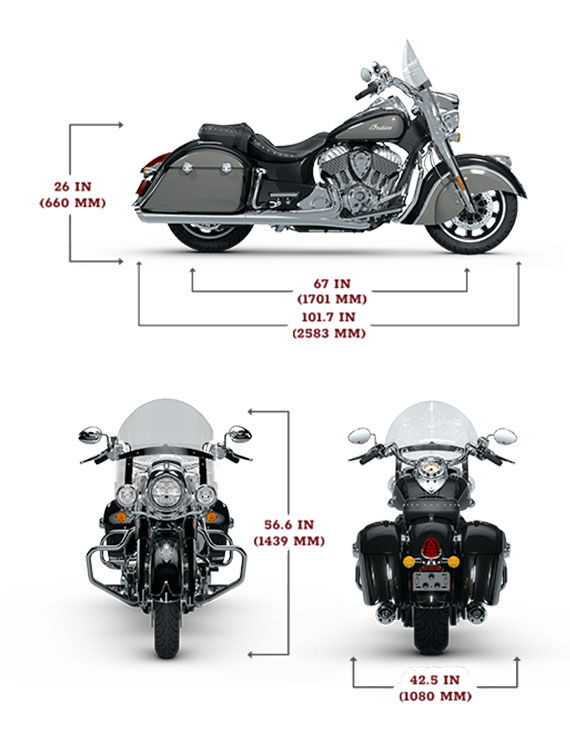

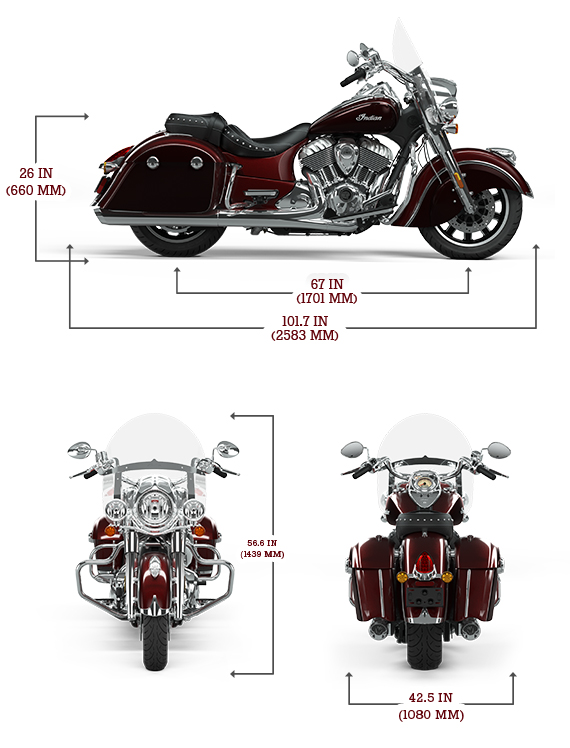

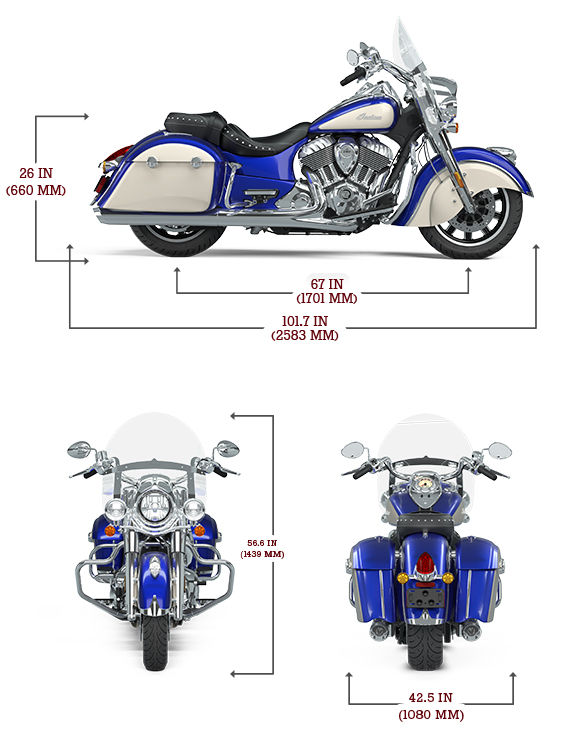

Dimensions

Fuel Capacity

5.5 gal (20.8 L)

Ground Clearance

5.6 in (142 mm)

GVWR

1385 lbs (628 kg)

Lean Angle

31°

Overall Height

56.6 in (1439 mm)

Overall Length

101.7 in (2,583 mm)

Overall Width

42.5 in (1,080 mm)

Rake/Trail

25° / 5.2 in (133 mm)

Seat Height

26 in (660 mm)

Weight (As Shipped / Running Order)

797 lbs (362 kg) / 829 lbs (376 kg)

Wheelbase

67.0 in (1,701 mm)

Brakes

Front Brakes

Dual 300mm floating rotors with 4-piston calipers

Rear Brakes

Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires

Metzeler Cruisetec 130/80B17 65H

Front Wheel

Highlight Machine Tour 17 in x 3.5 in

Rear Tires

Metzeler Cruisetec 180/60R16 80H

Rear Wheel

Highlight Machine Tour 16 in x 5 in

Suspension

Front Fork Tube Diameter

46 mm

Front Suspension

Telescopic Fork

Front Travel

4.7 in (119 mm)

Rear Suspension

Single Shock w/ Air adjust

Rear Travel

4.5 in (114 mm)

Features

Color / Graphics

Spirit Blue Metallic / Silver Quartz Metallic, Bronze Pearl Metallic / Silver Quartz Metallic

Factory Warranty

2 Years, Unlimited Miles

Gauges

Tank-mounted electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, and MPH or km/h unit designation; tank-mounted electronic fuel gauge with low fuel LED indicator

Infotainment

N/A

Lights

LED Headlamp/Driving, LED Tail/Brake/Turn Signal

Standard Equipment

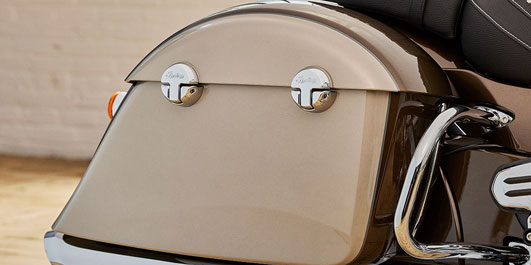

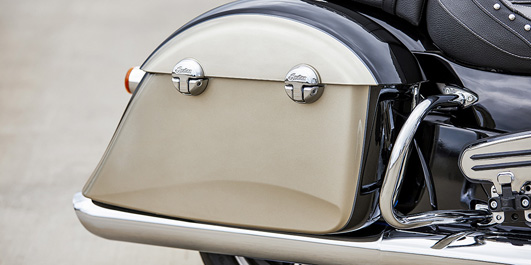

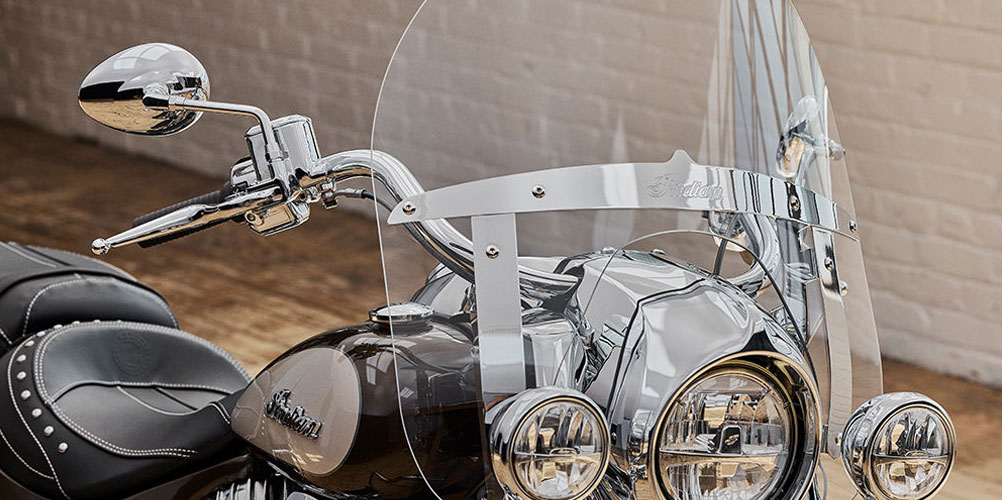

Quick Release Windshield; Genuine Leather Seat; Remote-Locking Hard Saddlebags, Highway Bars; Tire Pressure Monitoring; Light Bar; Selectable Ride Modes, ABS; Cruise Control; Keyless Ignition; Indian® Script Tank Badge; 12v Charging Port
